How Do You Install T Bar Transition Trim Between Floors?

A T-bar transition trim is a simple way to create a neat join between two floor surfaces, especially in doorways or open-plan areas. It helps cover the small gap between floors, protects the floor edges, and gives the room a cleaner, more finished look. For DIY users, the good news is that fitting a T-bar trim is usually straightforward when the floor levels are similar, and the gap is suitable. The key is to measure carefully, choose the right trim width, cut it cleanly, and fix it securely without restricting natural floor movement.

In this guide, we’ll cover the tools you need, the fitting steps, common mistakes, and buying points to check before ordering a T-bar transition strip.

T-Bar Transition Trim Explained

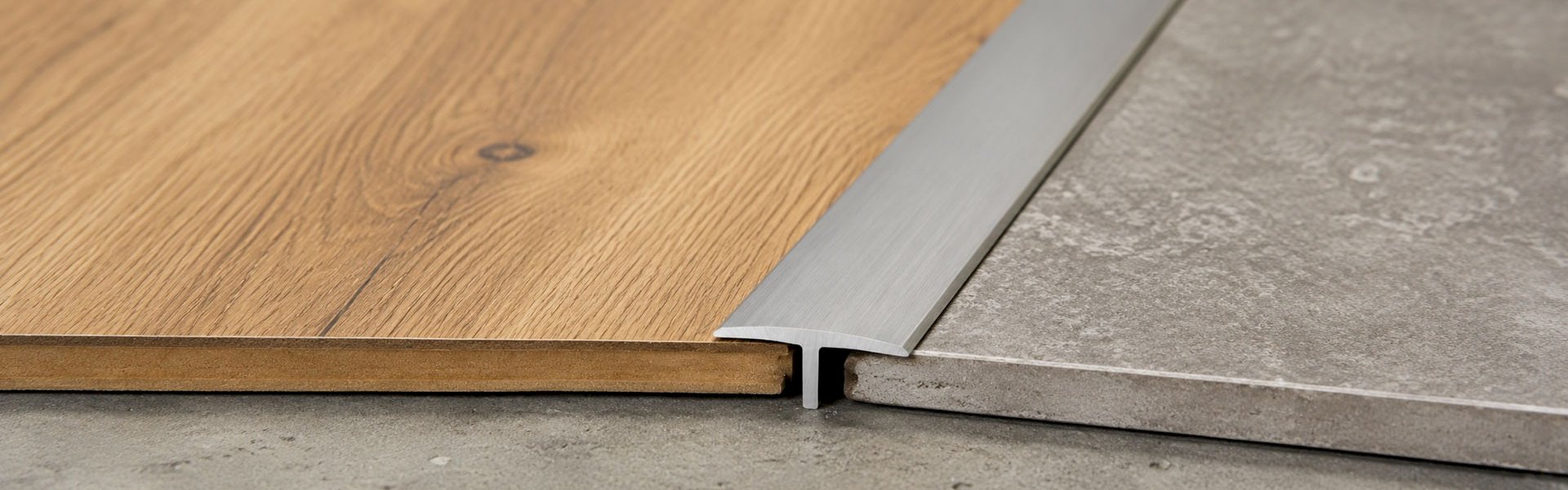

A T-bar trim takes its name from its cross-section shape. The flat top section bridges the gap between two floor surfaces, while the lower stem drops into the joint to hold the trim in position. Together, they cover the expansion gap, protect the exposed flooring edges, and create a smooth visual transition from one room to the next.

T-bar trims are most commonly used in doorways and open-plan spaces where two sections of flooring meet — for example, where a hallway runs into a living room, or a kitchen meets a dining area.

When Should You Use a T-Bar Trim?

T-bar trims work best in specific situations. Using the right trim for the right job makes a real difference to the final result.

Use a T-bar trim when:

• Both floor surfaces sit at roughly the same height
• You need to cover an expansion gap between two floating floors
• You're joining laminate, engineered wood, vinyl, or tile where the levels are closely matched

Common flooring combinations include:

• Laminate to laminate
• Engineered wood to engineered wood
• Luxury vinyl tile (LVT) to laminate
• Wood flooring to tile
• Vinyl to laminate

Avoid a T-bar trim when:

• One floor sits noticeably higher than the other — use a reducer or ramp strip instead
• The gap is too wide for the trim to bridge neatly
• The flooring manufacturer specifies a different transition method

If you’re planning a flooring project, you can explore a range of quality options here: T-Bar Transition Trims designed for a clean and professional finish.

Tools and Materials Needed

Before starting the installation, gather all the necessary tools and materials. Having everything ready will make the fitting process quicker, help you achieve a cleaner finish, and reduce the risk of mistakes.

i) Essential Tools

Most T-bar transition trim installations only require basic DIY tools, including:

• Tape measure
• Pencil or marker
• Mitre saw, hacksaw, or trim cutter
• Spirit level
• Utility knife
• Safety glasses
• Work gloves
• Cleaning cloth

ii) Materials Required

The exact materials will depend on the trim type you choose, but you will typically need:

• T-bar transition trim
• Track or fixing channel (if supplied with the trim)
• Suitable adhesive if required
• Screws and wall plugs where applicable
• Flooring manufacturer's recommended accessories

T-Bar Transition Trim Installation Steps

Installing a T-bar transition trim is a straightforward process when the floor levels are similar, and the gap is prepared correctly.

Step 1: Measure the Transition Area

Measure the width of the doorway or open transition from wall to wall. Note the width of the expansion gap between the two floor edges. Check that both floor surfaces are at a similar height using a spirit level — a T-bar trim won't sit flat over a noticeable step.

Tip: Measure twice, cut once. A trim that's too short cannot be saved.

Step 2: Cut the Trim to Length

Mark your measurement on the trim with a pencil. Secure the trim firmly before cutting and use a saw blade suited to the material — a fine-tooth blade for aluminium trims, or a wood blade for timber-effect profiles.

Cut slowly and smoothly to avoid jagged edges. Once cut, run your finger along the edge and remove any burrs with a utility knife or fine file.

Step 3: Fix the Track

Most T-bar trims use a two-part system: a fixing track that anchors to the subfloor, and the trim itself that clips or slides onto it.

• Timber subfloor: Position the track centrally over the gap and screw directly into the floor. Use the pre-drilled holes if the track has them, or mark your own at even intervals.
• Concrete subfloor: Mark the screw positions, drill pilot holes with a masonry bit, insert wall plugs, and screw the track down firmly.
• Adhesive-fixed trims: Apply the recommended adhesive to the subfloor, press the trim or track into position, and allow it to cure fully before walking on it. Follow the adhesive manufacturer's drying time.

Make sure the track runs straight along the centre of the gap. A slight misalignment at this stage becomes obvious once the trim is clipped on.

Step 4: Fit the T-Bar Trim

Once the track is secure, position the T-bar trim over it, aligning the stem with the slot in the track. Press down firmly and evenly along the full length until the trim clicks or locks into place. Some trims require a rubber mallet and a block of wood to tap the trim home without damaging the surface.

Check that the trim sits flat against both floor surfaces and that neither edge is lifted or rocking.

Step 5: Check and Clean Up

Run your hand along the trim and apply light foot pressure at several points to confirm it's secure. Check it's sitting straight and covers both floor edges evenly. Wipe away any dust, adhesive residue, or pencil marks with a clean cloth.

Stand back and look at the transition from a normal viewing angle — it should sit flush and look like a deliberate part of the floor design.

Common Fitting Mistakes to Avoid

• Measuring inaccurately — A trim that finishes short of the door frame or wall looks unfinished. Always measure the full width and add a small allowance.
• Using a T-bar on uneven floors — If there's a noticeable step between the two surfaces, a T-bar won't sit flat. Use a reducer or ramp strip instead.
• Blocking the expansion gap — The trim should cover the gap, not fill it. Don't pack adhesive or filler into the gap beneath the trim, as this can restrict the floor's natural movement and cause buckling.
• Cutting at the wrong angle — In doorways where the trim meets an angled frame, a straight cut may leave a visible gap. Offer the trim up dry first and mark any angles before cutting.
• Skipping the track — It's tempting to glue the trim directly to the floor for speed. Without a proper fixing track or secure adhesive, the trim will rock, lift, or slide over time — especially in busy doorways.
• Choosing the wrong trim width — The trim needs to cover the expansion gap on both sides fully. Too narrow and the floor edges are exposed; too wide and it can look clumsy.

Choosing a Suitable T-Bar Transition Strip

For doorways with heavy foot traffic — hallways, kitchens, open-plan living areas — an aluminium trim is usually the most practical choice. For bedrooms or quieter spaces, a wood-effect or matching laminate trim can blend in more naturally.

FAQs

Conclusion

A well-fitted T-bar transition trim is a simple but effective way to achieve a clean and professional join between two flooring surfaces. It not only improves the overall appearance of your space but also helps protect flooring edges and neatly cover essential expansion gaps.

With the right measurements, proper preparation, and correct installation method, you can achieve a long-lasting finish that works well in both residential and commercial settings. Whether you’re upgrading a single room or completing a full flooring project, a T-bar trim adds both practicality and a refined final touch to your floor.

If you're still deciding which type of threshold strip is right for your project, take a look at our complete guide to door threshold strips for laminate flooring — it covers every profile type, from T-bars and ramp strips to flat bars and UPVC options.
